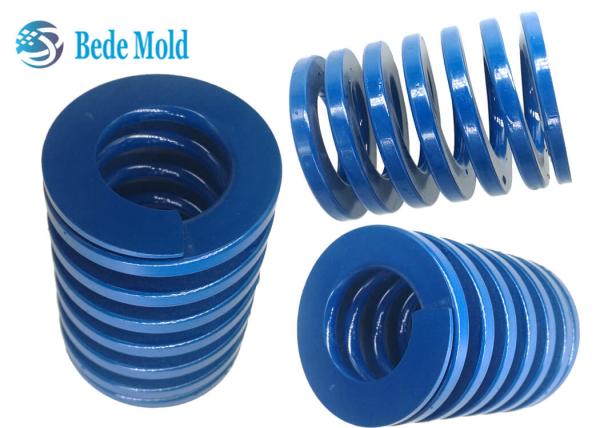

TL Injection Mold Spring Light Load Stamping Die Spring 50CrVA Materails OD 25 mm Blue Color
Discraption
- Mateials: Alloy steel 50CrVA
- Load: light Load TL
- Color: blue
- Compression Ratio: 40% maximum
- Outer Diameter: 25 mm, Inner diameter 12.5 mm
- Length: 20~300 mm
- Production standards: Japan JIS
| Load | Color | Compression Ratio % |
| Lightest | yellow | 40 | 45 | 50 |
| Light | blue | 32 | 36 | 40 |
| Medium | red | 25.6 | 28.8 | 32 |
| Heavy | green | 19.2 | 21.6 | 24 |
| Overweight | Brown | 16 | 18 | 20 |
| Life length/Compression times | 1,000,000 | 500,000 | 300,000 |
Quick Details
| materials | Alloy steel 50CrVA | outer diameter | 25mm |
| Compression Ratio | 40% maxi. | inner diameter | 12.5 mm |
| color | blue color | load | light load TL |
Length and price
| Size | Length / Millimeter |
| Φ 25 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 90 | 100 | 125 | 150 | 175 | 200 | 250 | 300 |
| Price/USD | 0.42 | 0.46 | 0.5 | 0.54 | 0.58 | 0.62 | 0.65 | 0.69 | 0.71 | 0.73 | 0.77 | 0.8 | 0.85 | 0.88 | 0.96 | 1.07 | 1.15 | 1.23 | 1.3 | 1.38 | 1.53 |
Other size
We have the following sizes on stock, and will ship within 2 days after receiving the payment, but the quantity of the stock changes at any time, so please contact us for confirmation before purchase.
| OD Φmm | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 27 | 30 | 35 | 40 | 50 | 60 | 70 |
| ID Φmm | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12.5 | 13.5 | 15 | 17 | 20 | 25 | 30 | 35 |
| Length mm | 20~300 | 40~500 |
Application
Springs are widely used in stamping dies, metal die-casting dies, plastic molds and other elastic precision mechanical equipment, automobiles and other fields.
Attention
Usually, the proportion of service life depends on the spring and compressed, probably relations are as follows,3 points should be paid attention to prevent premature failure of the spring:
1.Maintaining initial compression more than 1mm
2. Prevent any other articles from the middle of the spring
3. Keep vertical compression to prevent bending
Order and payment
- Please pay attention to our minimum order quantity.
- All shipping terms are available, please contact us for shipping cost.
- Prices can be negotiated for bulk order,
- customized size is available
About the payment, T/T, PayPal and WestUnion is welcome, for the bulk order , please feel free to contact us for whlesale price.
| Contact | Paypal | Western Union |
| Name | Alice Chu | alicechu@szbede.com | First name: | CAIXIA |
| whatsapp | +8618938686395 | Last name: | CHU |
| Mobile | +8618938686395 | Address: | Xinqiao Street,Bao'an District, Shenzhen, China |
| Office | +8675527084976 |
| Email | alicechu@szbede.com |
